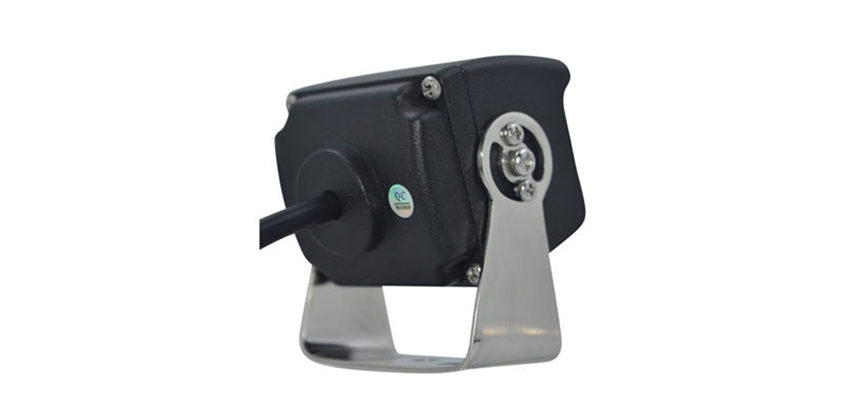

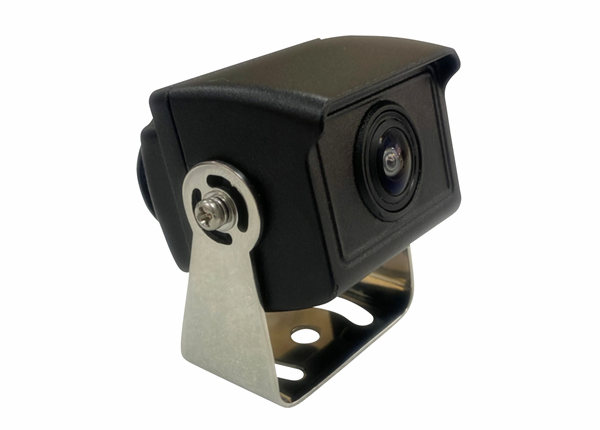

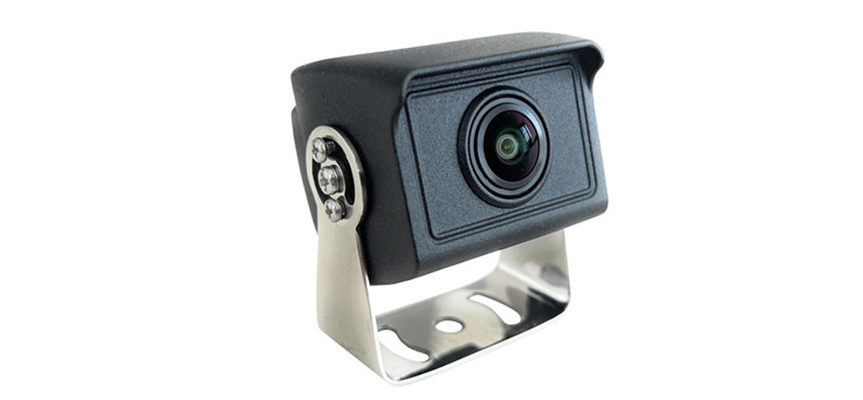

SN-CCD-686

AHD 1080P/960P/720P or CVBS rear view camera

Starlight AHD bus camera,wide view angle 140degrees,fish-eye lens



AHD specification:

AHD1080P/960P/720P

1-AHD 1080@25FPS;1080@30FPS;1920(H)*1080P(V)

2-AHD 960@25FPS;720@30FPS: 1280H*960V

3-AHD 720@25FPS;720@30FPS:1280H*720V



CVBS(D1) Specifications:

1-Soluton:AHD or CVBS

2-TV system:PAL/NTSC（can choose）

3-Horizontal Resolution:1200 TV lines(AHD version);1000TVLINES (CVBS)

4-Lens angle:2.8mm 140°

5-Water-proof rating:IP69K

6-Minimum Illumination:0 Lux

7-4pin Din connector;RCA;S-video;BNC connectors optional

8-6M extension cable for RCA connector

9-Shockproof degree: 10G

10-Waterproof; Shockproof;2 Million Pixel Camera;full colored Night Vision,super high resolution AHD screen effect at night!

11-Power supply:12V(Default)

12-DC24V optional
