SN-PC-698

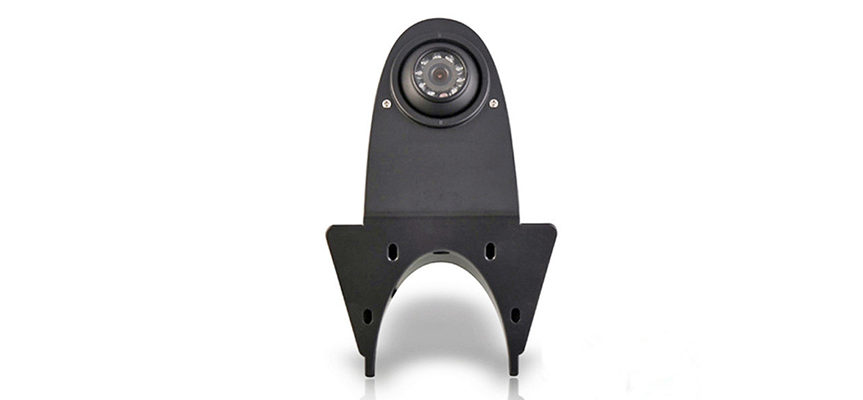

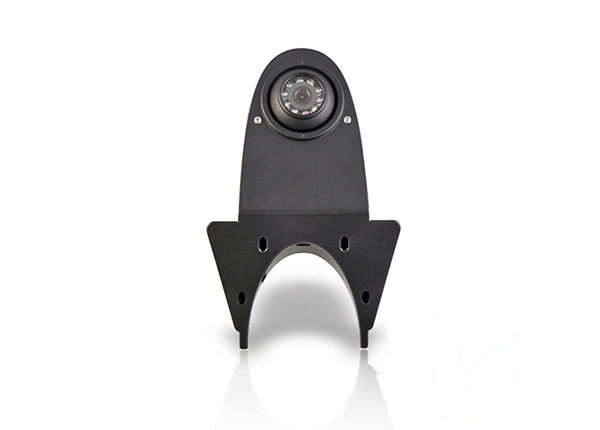

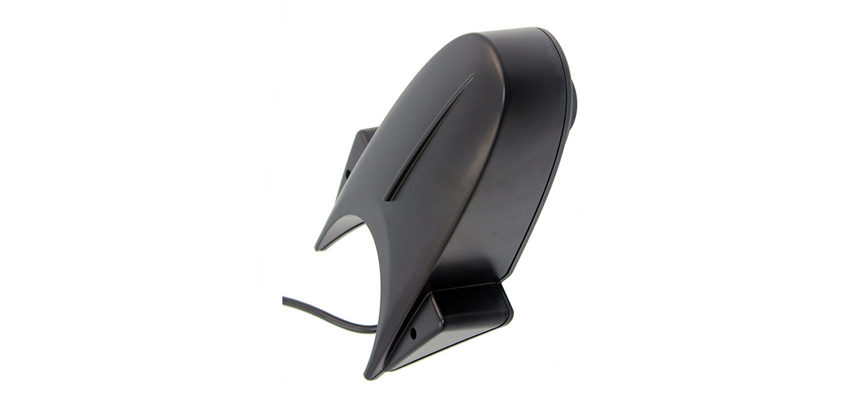

AHD 1080P/960P/720P or CVBS rear bus camera
AHD specification:
AHD1080P/960P/720P
1-AHD 1080@25FPS;1080@30FPS;1920(H)*1080P(V)
2-AHD 960@25FPS;720@30FPS: 1280H*960V
3-AHD 720@25FPS;720@30FPS:1280H*720V
CVBS(D1) Specifications:
1-Solution:AHD or CVBS
2-TV system:PAL/NTSC（can choose）
3-Horizontal Resolution:1200 TV lines(AHD version);1000TVLINES (CVBS)
4-Lens angle:2.8mm 100°
5-Water-proof rating:IP69K
6-Minimum Illumination:1 Lux with 10PCS IR lights
7-4pin Din connector;RCA;S-video;BNC connectors optional
8-6M extension cable for RCA connector
9-Power supply:12V(Default)
10-DC24V optional
