SN-1028HD-4

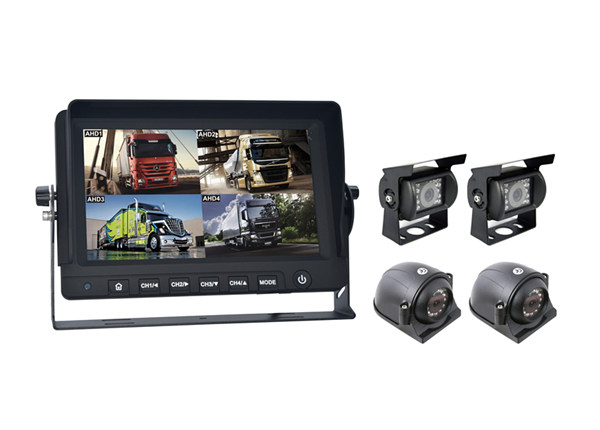

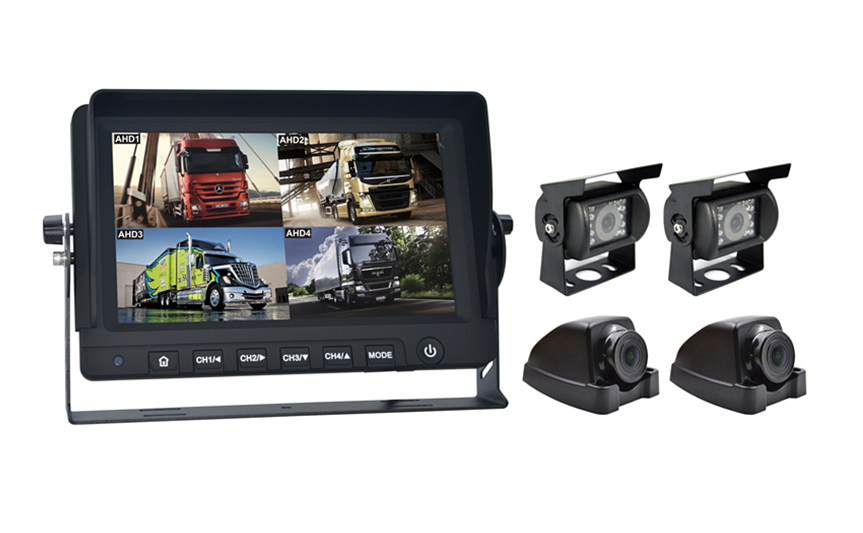

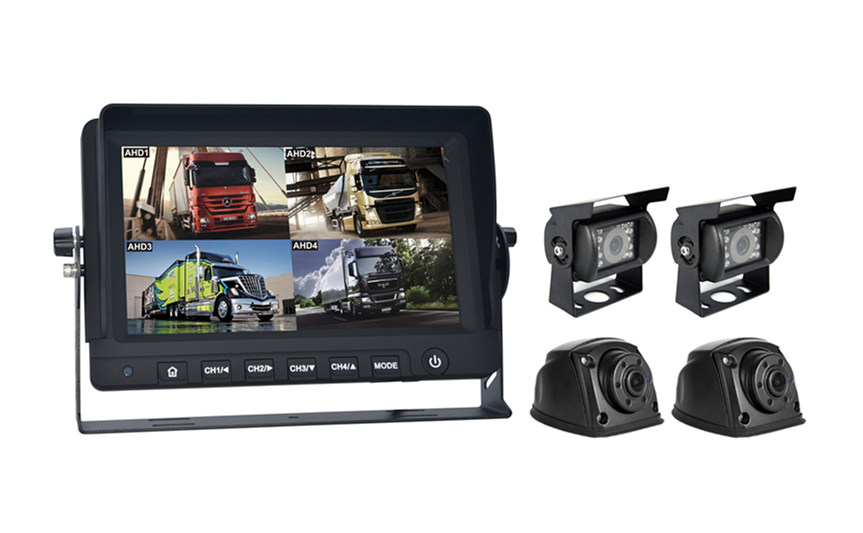

10.1inch Quad AHD bus camera system with touch buttons 4pcs cameras and 4pcs cables
Newest chips supports 4-ways synchronization
With high quality and monitor with mirror and Non mirror functions
Parking guide lines on/off menu
10.1inch Quad AHD monitor
Display size: 10.1
Display format: 16:9
Power dissipation: < 5 W
Power supply: 12V-36V
Format: NTSC/PAL
LCD Pixel: AHD 1024*600High resolution full view IPS panel)
Video input: 4 CH AHD video inputs
Built-in quad control box function
Support four camera inputs Single View/Split view/Quad view selectable
Trigger priority: AHD 1>AHD 2>AHD 3>AHD 4
With high-low voltage protection and short circuit protection
Menu languages: Compatible with several languages
Blue screen,When no signal
Key and full function OSD remote control
Auto switch when back the vehicle
U sharp bracket Especially designed for Bus, Agricultural and engineering vehicle use
Digital AHD High resolution camera
Support 1080P/960P/720P high resolution
High resolution 1200TVLINES
IR light vision, 18pcs IR lights
Shockproof degree: 10G
Waterproof degree: IP69K
View angle: 2pcs rear view cameras 120degrees,2pcs side bus cameras:120degrees
With IR cut function,automatically adjust IR light at night
Camera waterproof; Shockproof;2 Million Pixel Camera;
super high resolution AHD screen effect at night
Power supply:9V-36V
4PIN connector
