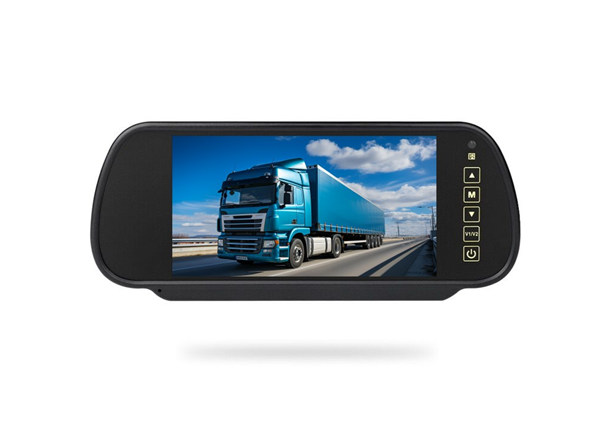

7Inch High resolution AHD high resolution mirror monitor
Display size 7 ″
Display format 16:9
LCD resolution 1024*600 （IPS full view LCD Panel)
Brightness 450cd/m2 Default （1000cd/m2 optional）
Power supply 9V-36V
Video input 2-CH inputs
Video signals 2 channels AHD video inputs, support CVBS/AHD720/960P/1080P mixed connection
Format NTSC/PAL (Auto)
Color system AUTO
Operation Touch Buttons or Remote control
Connector RCA /BMW /4 Pin Aviation connector
Trigger function AHD2
Reversing setting Automatically switch to AHD2 when reversing
Reversing delay Default value is 0,can be set
Application Bus, truck,forklift,RV,tractor,harvester and industrial/agricultural machinery
OSD menu language Chinese/English/Korean/Francais/Russian/ Danish/Japanese
Mirror and Non mirror functions Yes
Parking guidelines on/off setting Yes

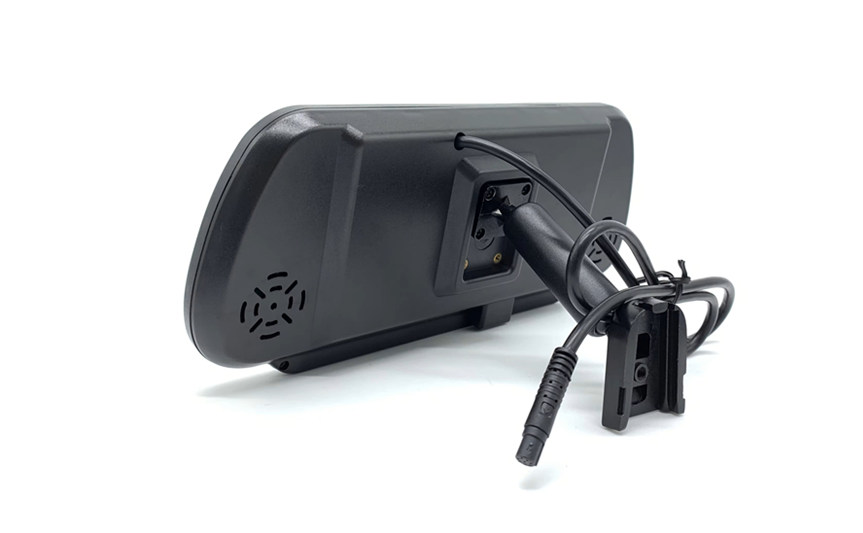

Bracket Clip-on or Stalk or others OEM brackets
Operation Temperature -20℃ to +80℃（RH95％Max.）
Storage temperature -30℃ to +80℃（RH95％Max.）
